Project Description

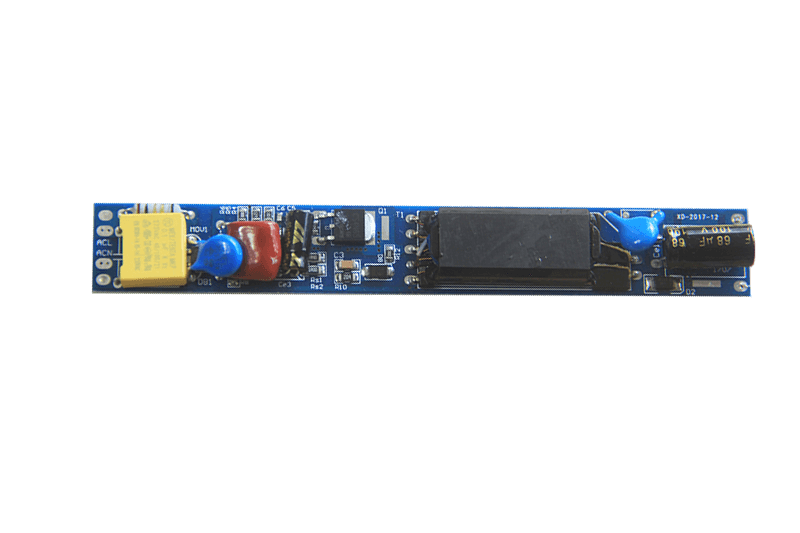

36-50Watt constant current driver EMC certified super slim Led driver for Led panel light

  • Constant current output, Super slim profile

  • High efficiency>9o%, High PF>0.95, No flicker

  • EMC compliant

  • Protections: overload, short-circuit, over-temperature, open-circuit, overcurrent

  • Various applications: LED PANEL LIGHT, LED BULBS, LED DOWN LIGHT, LED CEILING LIGHT ETC

Overview

QK-HP3650-CE is desgined specially for Led panel light.  We use a super slim profile design for an elegant appearance.  Plastic shell or aluminum shell is optional for external use.  We suggest also this item for Led tube light, Led purification fixture or other Led general lighting that requires a High PF value and constant current. Customized current and voltage is possible.

Parameters and Details

50W high pf led driver50W high PF led driver
Item bumberQK-HP3650-CE-NF
Power (wattage)36-50W
Input Voltage (Vac)175-264V
Output Voltage (Vdc)90-148V
Output Current (mA)230-300
Efficiency90%
Power Factor>0.95
L*W*H (mm)110*38*22

Environment requirement:

Working temperature: -40°C TO +75°C

Storage temperature: -25°C TO +70°C

Working humidity: 35~85%   RH.(noncondensing situation)

Storage humidity: 5~95%   RH. (noncondensing situation)
